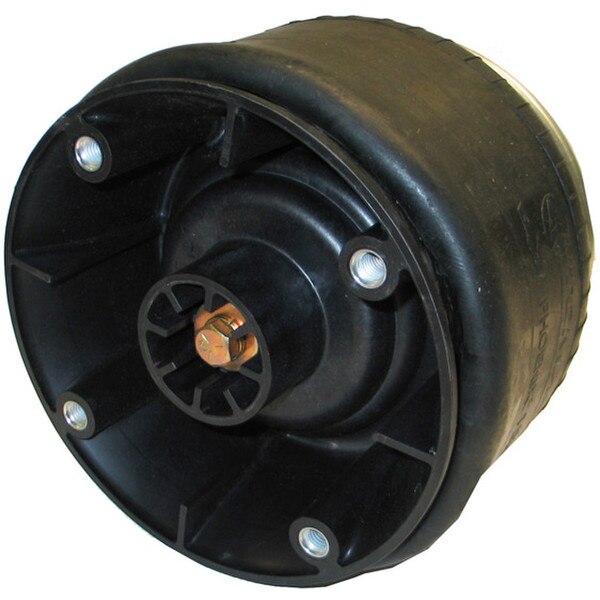

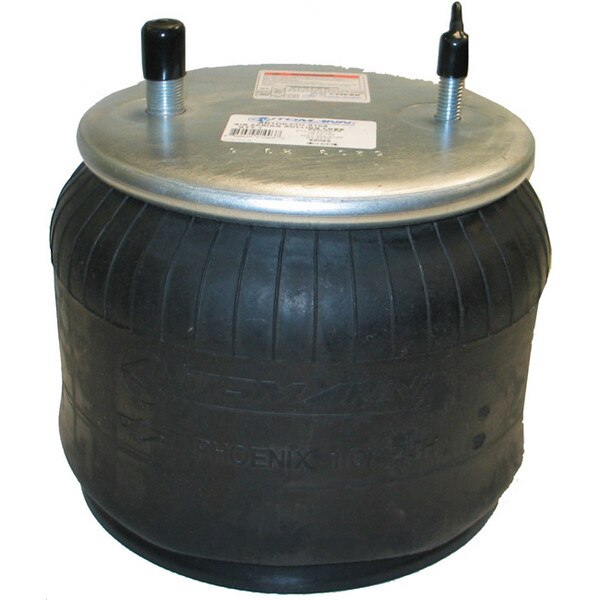

A554770C1 Aftermarket Rolling Lobe Air Spring

$210.42
Back

Details

TypeRolling Lobe
Automann Bellows#1DK23H
Firestone Bellows#1T15M-2
GoodYear Bellows#566-24-3-067
Contitech Bellows#9 10-12
Triangle Bellows#6361, 6388
Bottom Plate TypeP
Top Plate Hole/Stud Qty2
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)5.50
Bottom Plate Hole/Stud Qty4
Bottom Plate Dia. (C)9.50
Bottom Plate C to C Dia. (D)7.88
Bottom Part #BS12070
Bottom Plate Alignment45 Degree
BumperYes
BracketN/A
Min. Height6.1
Max. Height15.5
Max. Dia.12.6
