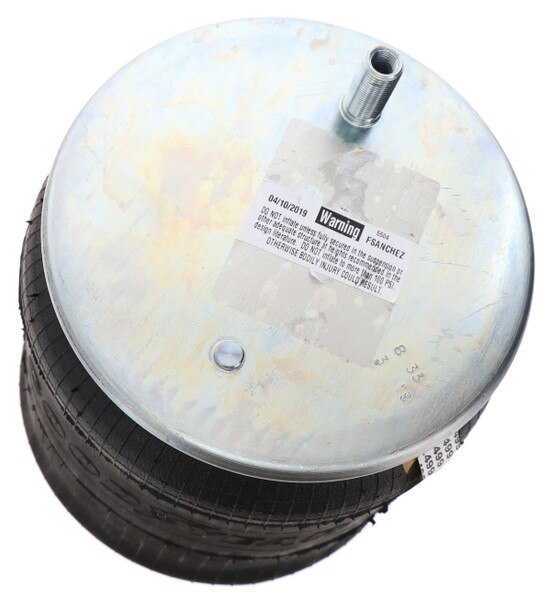

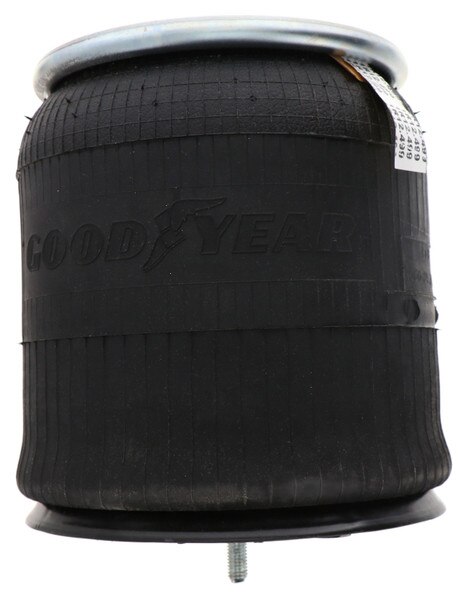

A50898002 Air Spring Rolling Lobe

Load (Lbs) @80 PSI5900
Load (Lbs) @100 PSI7500
Natural Freq. (CPM)23.1
Design Height (In)14.7
Top Plate Hole/Stud Qty2
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)6.20
Bottom Plate Hole/Stud Qty1
BumperYes
Min. Height12.5
Max. Height8
Max. Dia.12.6
