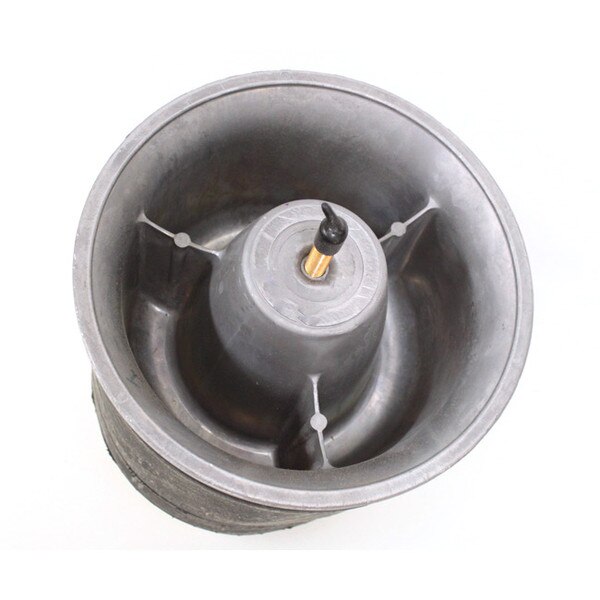

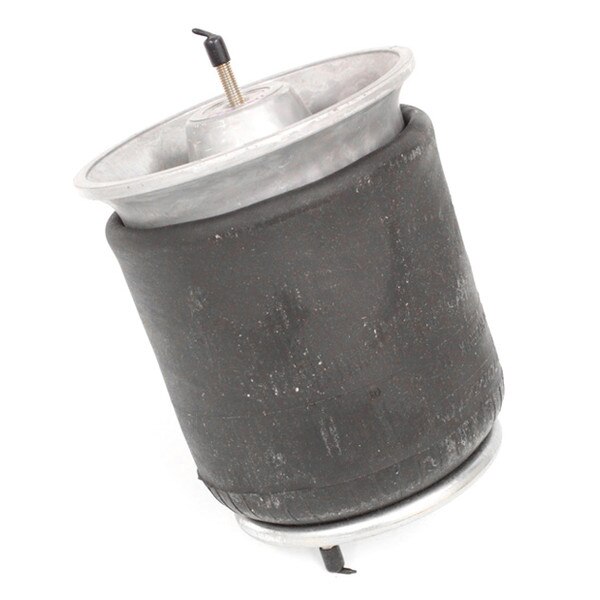

A1619468000 Aftermarket Air Spring Rolling Lobe

$176.80

Ordered as Needed

Back

Details

SKU: A1619468000
Cross Reference: 1619468000, 16-19468-000, 6813200017, A1614004000, 1616773000, 1613810000, 161384000, 1R12-603, W01-358-9781, W01-359-9781, W01-377-8536, W01-377-9781, 9782, W01-358-9782, 779781-KAL, SCW01-377-8529, RR1R12-1082, 9781, 8382, 62466, 15ZR-6, 01FS9781P, WA01-9781, VTC-24692, FLT1R12603, FS9781, S-22469, AB1DF23-9781
Bus: Thomas
Producer: Aftermarket


Features:

  • Cap Number: 3191
  • Piston Number: 9604
  • Top Plate Hole/Stud: 2
  • Bottom Plate Hole/Stud: 1
  • Extended Height: 23.00"
  • Compressed Height: 8.75"
  • Top Plate Diameter: 9.00"
  • Bottom Plate Diameter: 10.62"
